A barn can have good stalls and still be awkward to work in. Feed ends up on the wrong side of a gate. A water tank blocks the route you use for equipment. Cleaning means moving things out of the aisle before you can begin.
Stable systems planning brings those decisions together. The goal is to choose stalls, gates, feeders, water stations, and connecting hardware around the jobs you do every day. That applies whether you are improving an older barn or starting with an empty building.
Begin with your routine: feeding, checking water, turning horses out, bringing them in, and cleaning. Walk through those tasks before making an equipment list.
1. Follow a normal chore route
On a simple sketch, mark where you enter the barn, where supplies are kept, and where horses move between stalls and turnout. Add the route used by your wheelbarrow, cart, or other cleaning equipment.
Look for repeated backtracking and places where two jobs compete for the same space. Can you reach a feeder without parking supplies in the main walkway? Can a gate open fully when equipment is nearby? Where will a hose go while you fill and clean a tank?
You do not need a polished floor plan. A few photos and a sketch can help explain what is inconvenient now and what you want to improve.
2. Choose stall components as a complete system
Start with the horses using the stalls, measured openings, existing posts and walls, and the full front-and-side arrangement. Then discuss the appropriate stall model, door configuration, panels, and mounting requirements.
For a retrofit, identify any equipment you plan to keep. Similar-looking panels and matching nominal sizes do not establish compatibility. Photos of the connections and the manufacturer or series name are useful alongside measurements.
Account for shared partitions, ends of stall rows, and wall connections. Ask which brackets and fasteners are required at each location, and follow the selected system's installation instructions.
If you are still working out the layout, start with our stall measurement and layout guide.
3. Plan gates around the traffic using them
A person carrying a bucket, a horse being led through, and a tractor need different access arrangements. List what must pass through each opening before choosing the gate.
For equine use, ask about equipment suited to the horses and intended setting. Check actual dimensions, opening clearance, swing direction, hinge and latch arrangements, supporting posts, and compatible connections.
Think about where you stand to operate the gate and how it affects the adjacent route. A gate that works well at a pasture entrance may not be the right choice for every space around the barn. Choose each location on its own requirements.
4. Match feeders to the feeding routine
Describe the feed you use, the animals being fed, and whether the feeder belongs in an individual stall or a shared area. Consider how you will fill it, inspect it, and remove it or reach it for cleaning.
For stall-mounted equipment, confirm compatibility with the specific panel and feeding opening. A feeding door and a feeder may be separate items. Include both in the conversation instead of assuming that the photographed arrangement is a complete package.
For hay or grain equipment outside the stall, confirm the intended animal use, mounting or placement requirements, and the exact model. The equipment choice should support your feeding plan; it does not replace it.
5. Give watering and cleaning their own space
Water equipment needs more thought than choosing a capacity. Explain how many animals will use it, where it will sit, how you will refill it, and how you will inspect and clean it.
Compare the dimensions, access, material, drain arrangement, and handling needs of the proposed tank or trough. Plan the surrounding area so the watering point can be serviced without blocking a gate or the route used for chores.
Include seasonal conditions in the discussion. If winter protection or powered equipment is part of the plan, confirm approved compatibility and installation requirements for the exact products.
Keep the route for removing bedding and manure in view while placing equipment. Cleaning access is part of the layout, not something to work out after the equipment arrives.
A quick way to connect chores with equipment
| Daily task | Equipment to discuss | Question to resolve |
|---|---|---|
| Bring horses in and out | Stall fronts, doors, equine gates | Do openings, operation, and connections fit the intended route? |
| Feed | Stall feeders, hay and grain feeders | Is the model appropriate and compatible with the planned setup? |
| Check and refill water | Stock tanks and water troughs | Can you reach, fill, inspect, and clean the unit? |
| Clean stalls | Stall and gate layout | Can your cleaning equipment reach each working area? |
| Connect the system | Brackets, mounting hardware, posts | Are all required connections specified for the selected products? |
Improve the biggest inconvenience first
You may not need to replace everything at once. Identify the recurring problem you most want to solve: awkward feeding access, a gate that interrupts the route, worn stall fronts, or a watering point that is difficult to service.
Plan that change in the context of the whole barn. If you expect to add stalls later, discuss that now so the first phase can be checked against the longer-term layout. Compatibility and future availability still need to be confirmed.
Turn the plan into a clear equipment quote
At Flint Hills Barns & Buildings, we help customers work through barn and stable equipment, including Tarter stall systems, gates, panels, feeders, and stock tanks. You can start with the task you want to improve instead of a list of product numbers.
Send Bobby your project ZIP, the number and type of animals, approximate quantities, and any measurements, photos, or sketches you have. We will help narrow the equipment choices and confirm current products and order details with the supplier.
Your written quote should identify the selected equipment, quantities, lumber and hardware where applicable, delivery arrangements, and any installation that is expressly included. For a closer look, read what to include in a horse stall quote.
What would make your daily barn routine work better? Tell Bobby what you are trying to change, and we can start there.
Plan my barn equipment with Bobby
Prefer email or text? bobby@flinthillsbarns.com · 620-551-1194

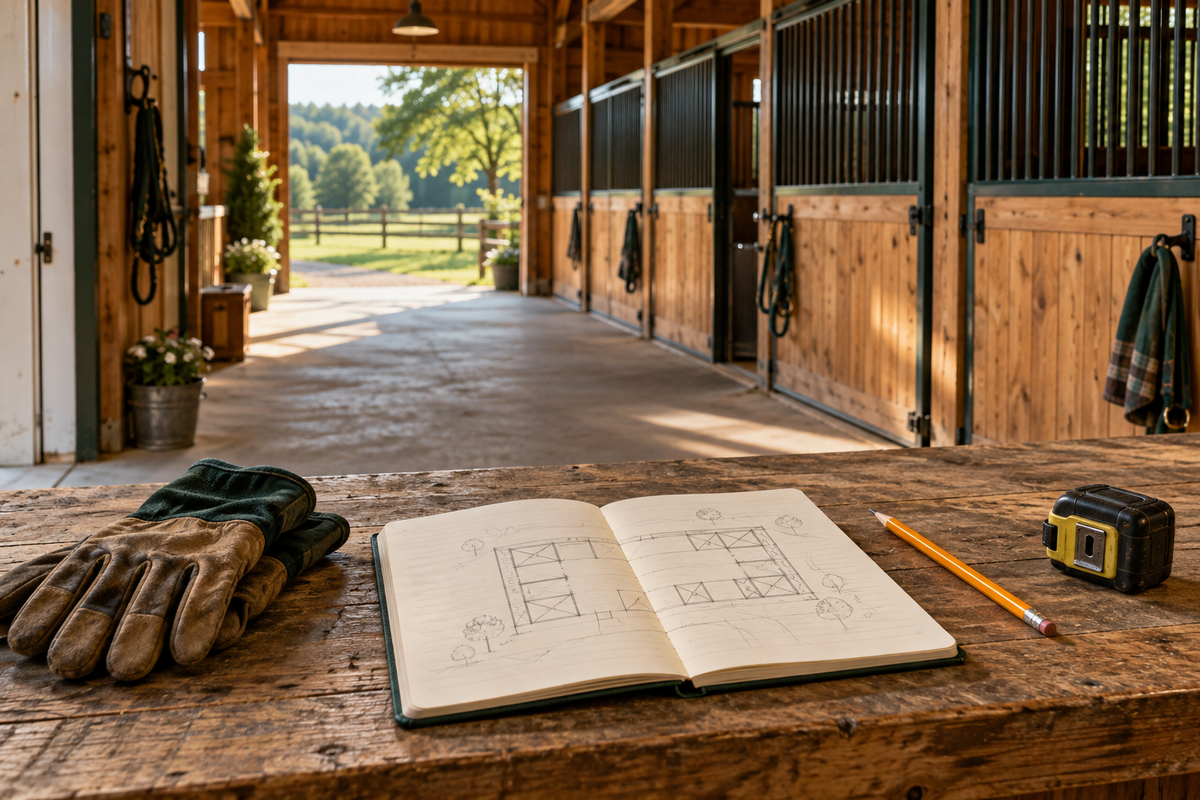

Article image: illustrative barn-planning artwork.
