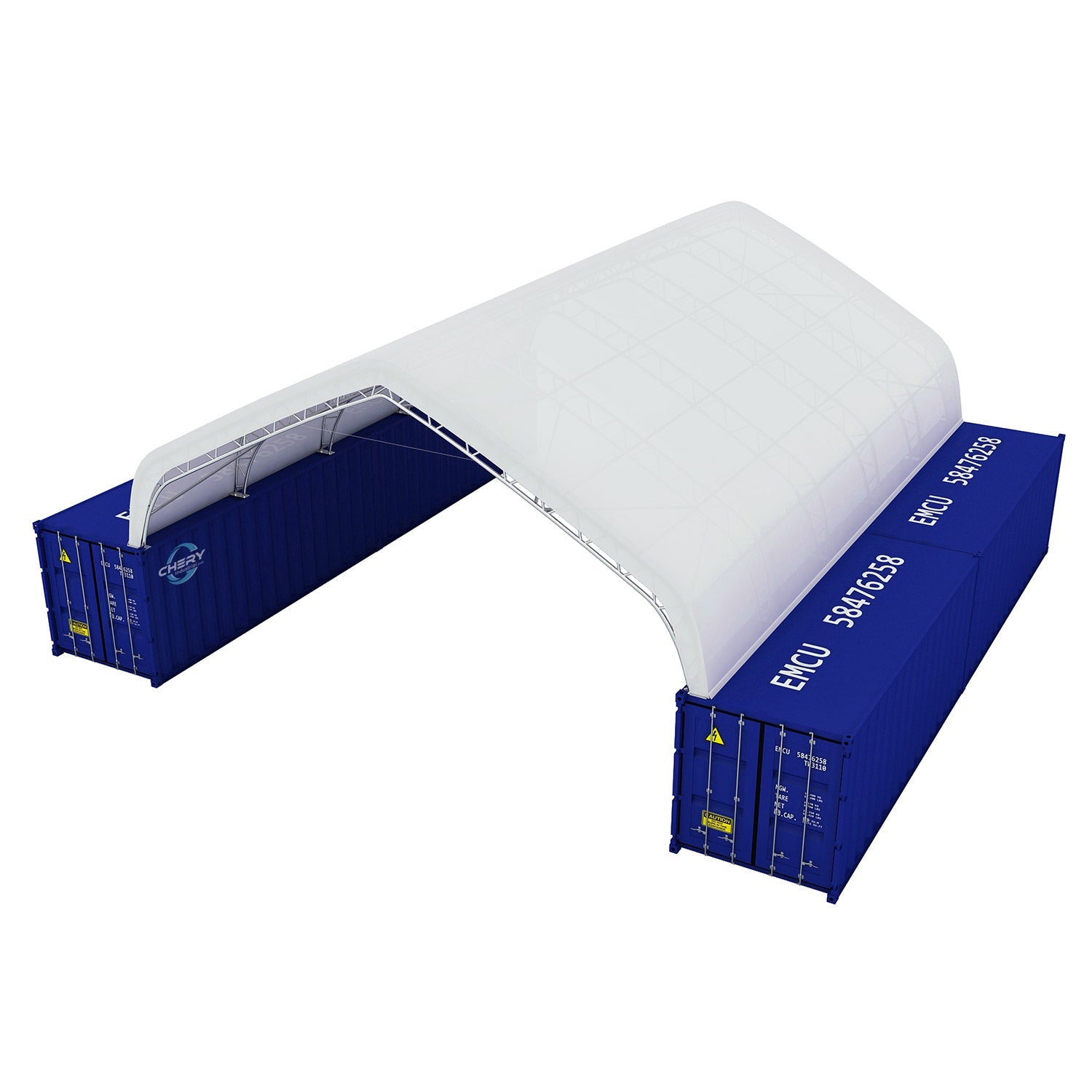

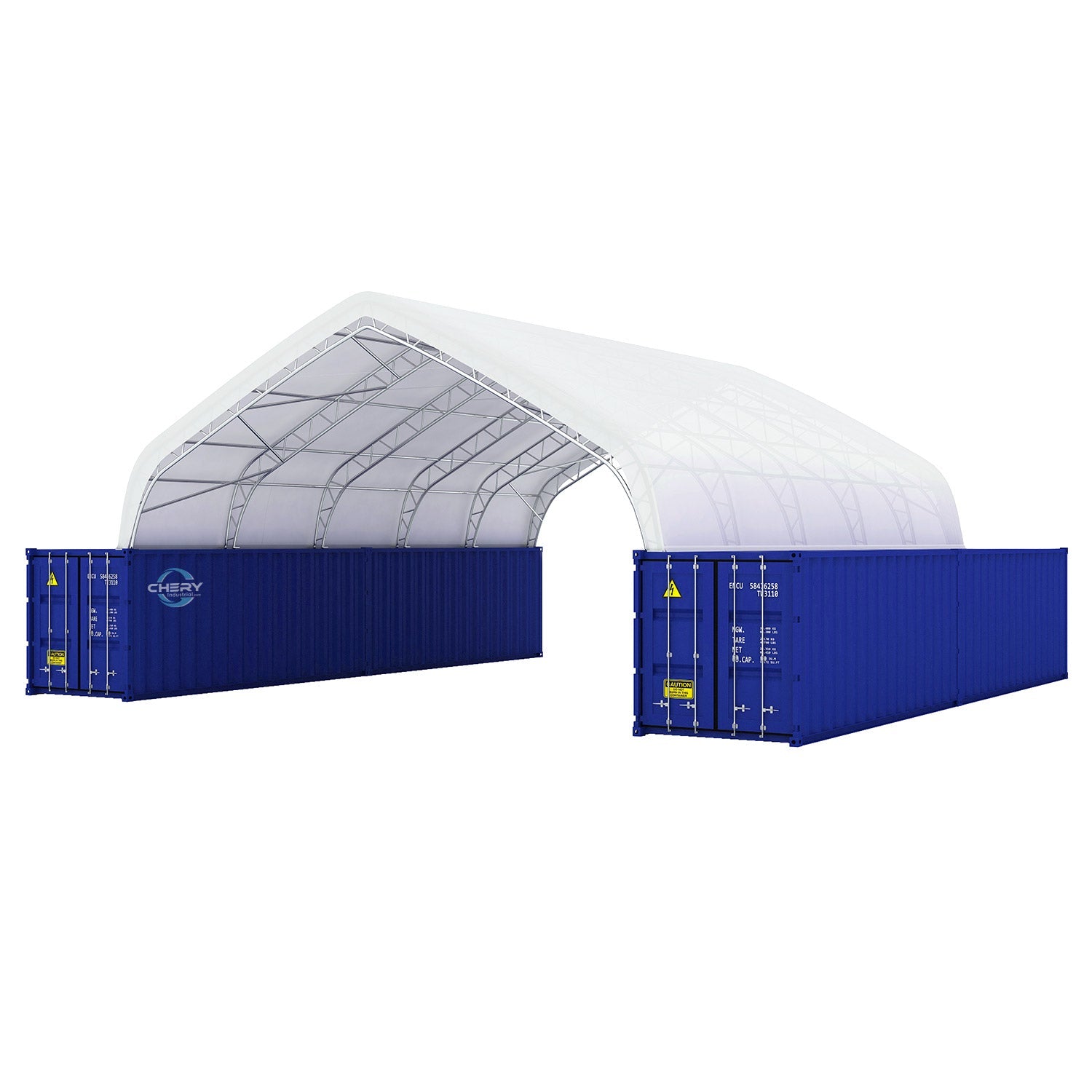

40'x40'x15' Double Truss Peak Container Canopy Shelter
40'x40'x15' Double Truss Peak Container Canopy Shelter - 22oz PVC is backordered and will ship as soon as it is back in stock.
40'x40'x15' Double Truss Peak Container Canopy Shelter
40'x40'x15' Double Truss Peak Container Canopy Shelter - 22oz PVC is backordered and will ship as soon as it is back in stock.
Description
Description
Product Overview
Create serious covered storage without the cost and complexity of a conventional building with the 40' x 40' x 15' Double Truss Peak Container Canopy Shelter.
Designed to span between shipping containers, this heavy-duty shelter creates approximately 1,600 square feet of protected space for equipment, machinery, hay, feed, materials, vehicles, agricultural supplies, and commercial storage.
Its reinforced double-truss galvanized steel structure and heavy 22 oz PVC cover make it an excellent option for farms, ranches, contractors, industrial properties, and anyone needing substantial weather-protected space without constructing a traditional enclosed building.
Key Features
1,600 Square Feet of Covered Space
At 40 feet wide by 40 feet long, this shelter provides a substantial open-span work and storage area.
The 15-foot peak height provides valuable vertical clearance for larger equipment and machinery while maintaining an open interior that can be configured around the way you actually work.
Use it for:
- Tractors and farm machinery
- Hay and feed storage
- Implements and attachments
- Trucks and trailers
- Construction equipment
- Building materials
- Livestock and agricultural supplies
- Contractor equipment
- Commercial inventory
- Seasonal storage
- Covered work areas
Heavy-Duty Double Truss Frame

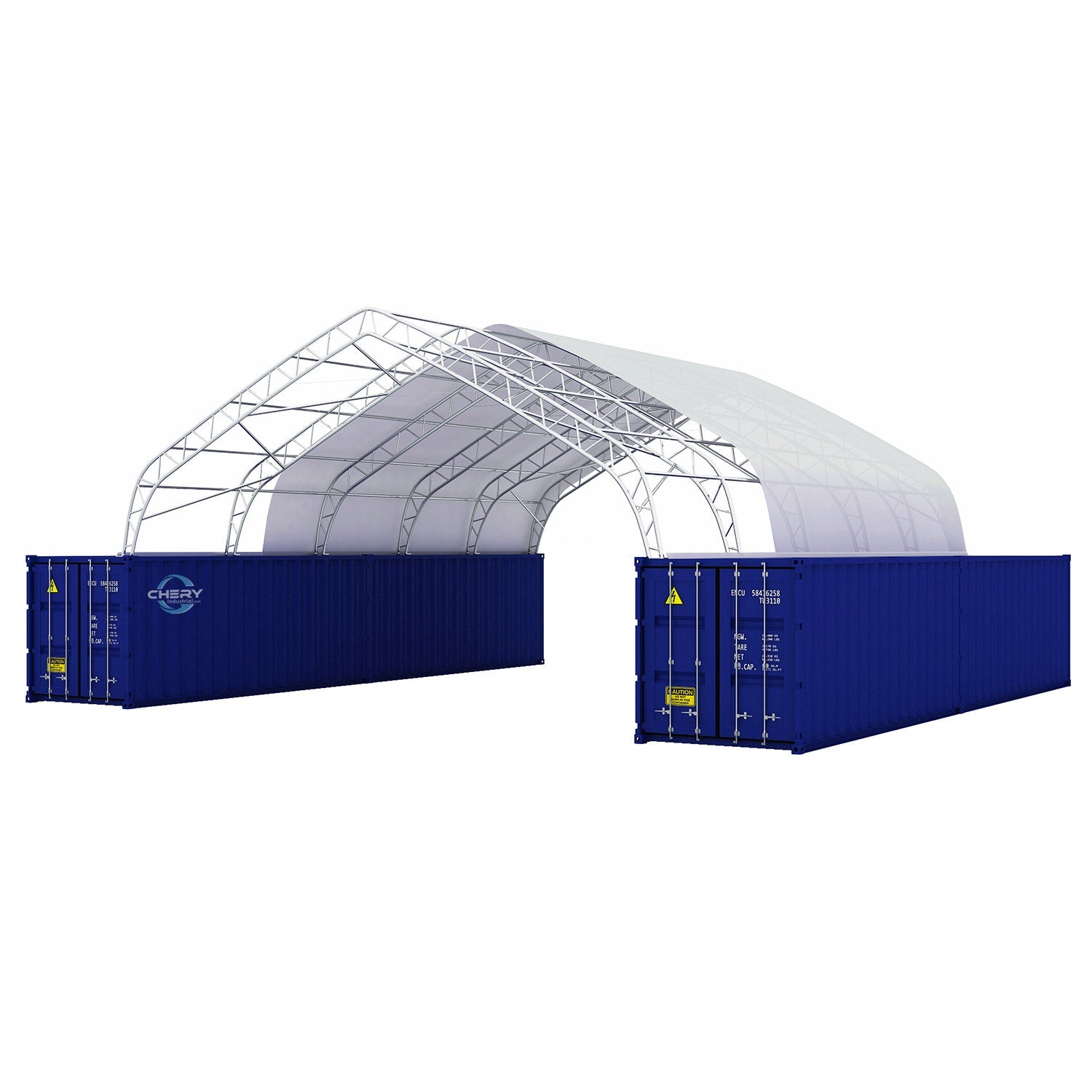

This model uses a double-truss structural design throughout the shelter.
Compared with lighter single-truss canopy systems, the reinforced framework is designed to provide additional strength and rigidity across the large 40-foot span.
The steel frame is hot-dip galvanized to help protect against corrosion and rust during long-term outdoor use.
22 oz PVC Cover
A heavy-duty 22 oz PVC fabric cover forms the protective outer shell of the shelter.
The tensioned cover provides dependable overhead protection for equipment, materials, and supplies while eliminating many of the roofing components required by a traditional pole barn or metal building.
A pipe-and-ratchet tensioning system helps maintain proper cover tension across the structure.
Reinforced Connections
Heavy-duty frame connectors, securely bolted components, and self-locking nuts help maintain structural stability while reducing routine adjustment and maintenance.
Additional ratchet tensioners help keep the PVC cover tight across the frame for a cleaner fit and dependable performance.
- 40' wide × 40' long × 15' high
- Approximately 1,600 sq. ft. of covered space
- Heavy-duty double-truss construction
- Hot-dip galvanized steel frame
- 22 oz PVC cover
- 8' truss spacing
- 60 mm structural arch tubing
- 60 mm purlin tubing
- Pipe-and-ratchet cover tensioning system
- Heavy-duty bolted frame connectors
- Self-locking hardware
- Designed for mounting between shipping containers
- High-clearance peak configuration
- Open-span interior
- Suitable for agricultural, commercial, industrial, and equipment-storage applications
More Covered Space Without Building Another Barn
Sometimes you don't need another conventional building.
You need a lot of protected space — quickly, efficiently, and without giving up the flexibility of your property.
With 1,600 square feet of coverage, a reinforced double-truss galvanized frame, heavy PVC canopy, and the ability to incorporate shipping containers into the structure, this 40' x 40' x 15' shelter creates a practical solution for farms, ranches, equipment yards, and commercial operations that simply need more room to work.

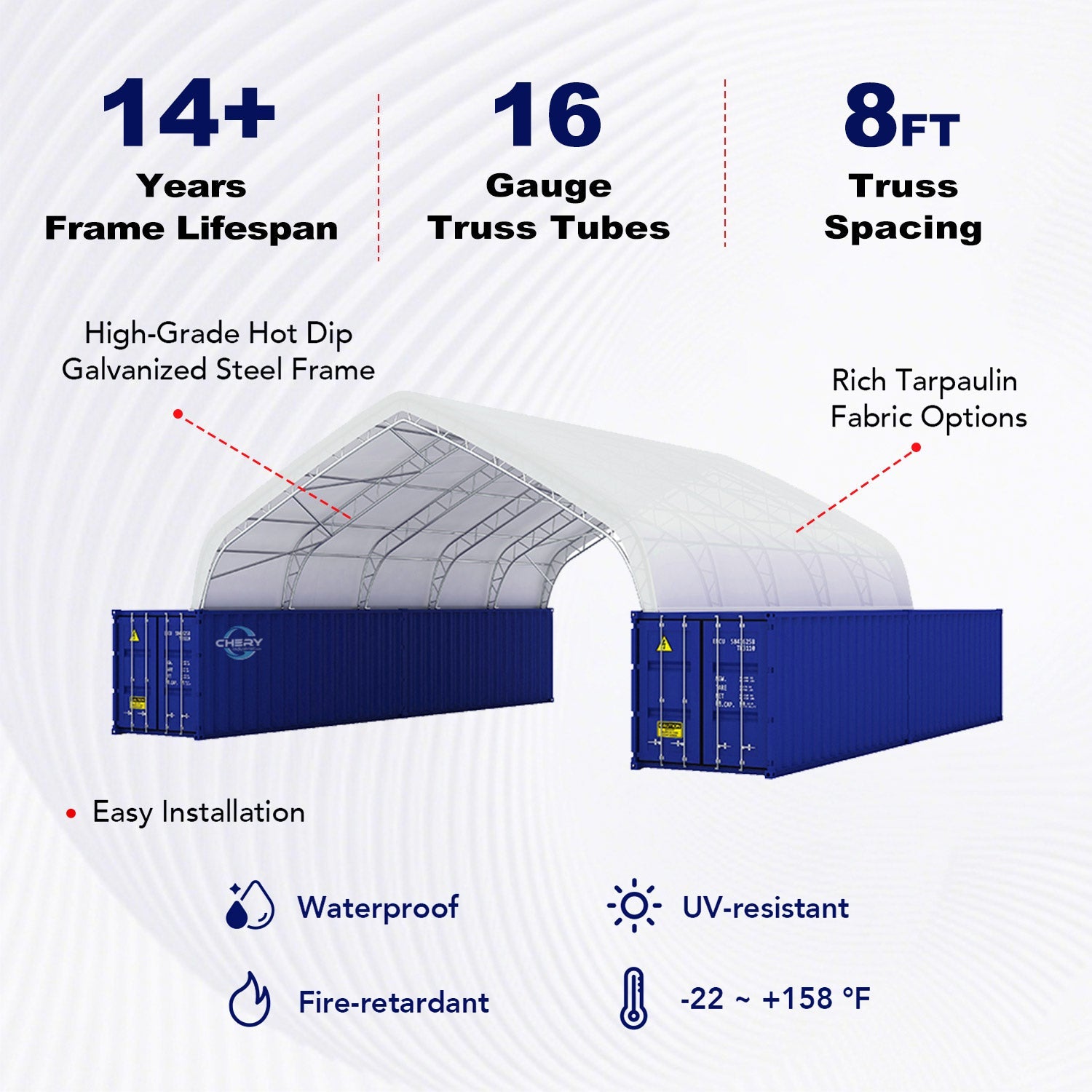

Specifications

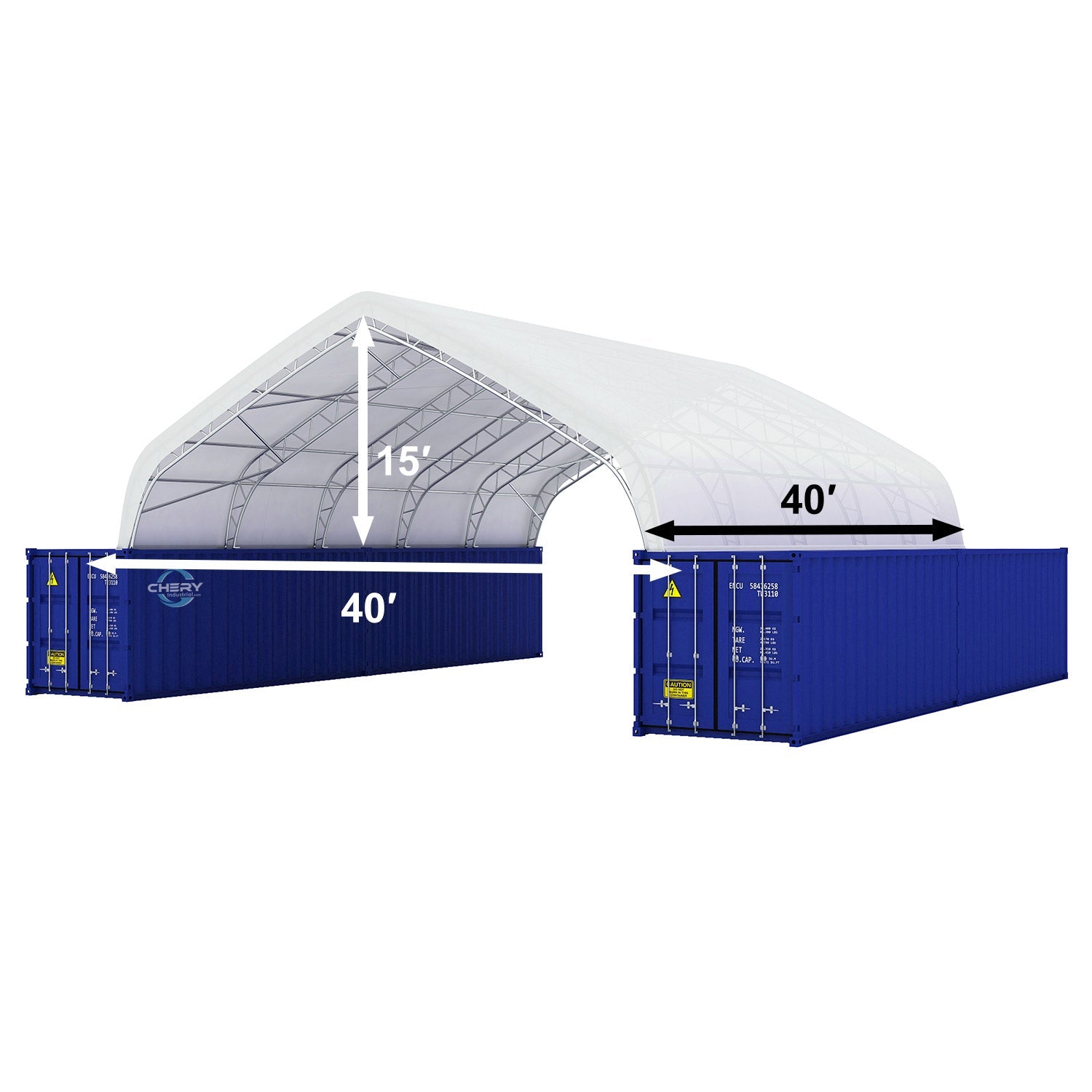

Overall Dimensions: 40' W × 40' L × 15' H
Approximate Coverage: 1,600 sq. ft.
Frame Type: Double truss
Frame Material: High-grade hot-dip galvanized steel
Cover Material: 22 oz PVC
Truss Spacing: 8'
Arch Tubing: Ø60 × 1.5 mm
Purlin Tubing: Ø60 × 1.5 mm
Tensioning System: Pipe and ratchet tie-down system
Manufacturer-Listed Snow Load: 20 lb./sq. ft.
Manufacturer-Listed Wind Load: 40 mph
Temperature Resistance: Approximately -22°F to 158°F
Manufacturer-Listed PVC Cover Life: Approximately 7–10 years*
Manufacturer-Listed Frame Life: 15+ years*
*Actual service life will depend on installation, climate, exposure, maintenance, and operating conditions.
Recommended Uses
Designed for Demanding Applications
Manufacturer-listed structural specifications include:
- 20 lb./sq. ft. snow load
- 40 mph wind load
- Operating temperature range from approximately -22°F to 158°F
Proper installation and anchoring are critical to achieving rated performance.
Local weather conditions, snow accumulation, wind exposure, building codes, and site conditions should always be considered before installation.
Ideal For Farms & Ranches
Large agricultural equipment needs large-scale protection.
This shelter provides room for tractors, implements, hay, feed, trailers, livestock supplies, and other equipment without requiring everything to be packed into a conventional barn.
Shipping containers positioned along the sides can also provide lockable storage for tools, chemicals, feed, tack, parts, and other items that need greater security.
The covered center area remains available for machinery, materials, or work space.
Ideal For Contractors & Commercial Operations
The large open span also makes this shelter an excellent option for:
- Construction companies
- Equipment yards
- Landscaping businesses
- Material storage
- Vehicle and trailer storage
- Maintenance operations
- Industrial properties
- Warehousing overflow
- Covered loading and staging areas
- Temporary or semi-permanent operational space
Site / Delivery Notes

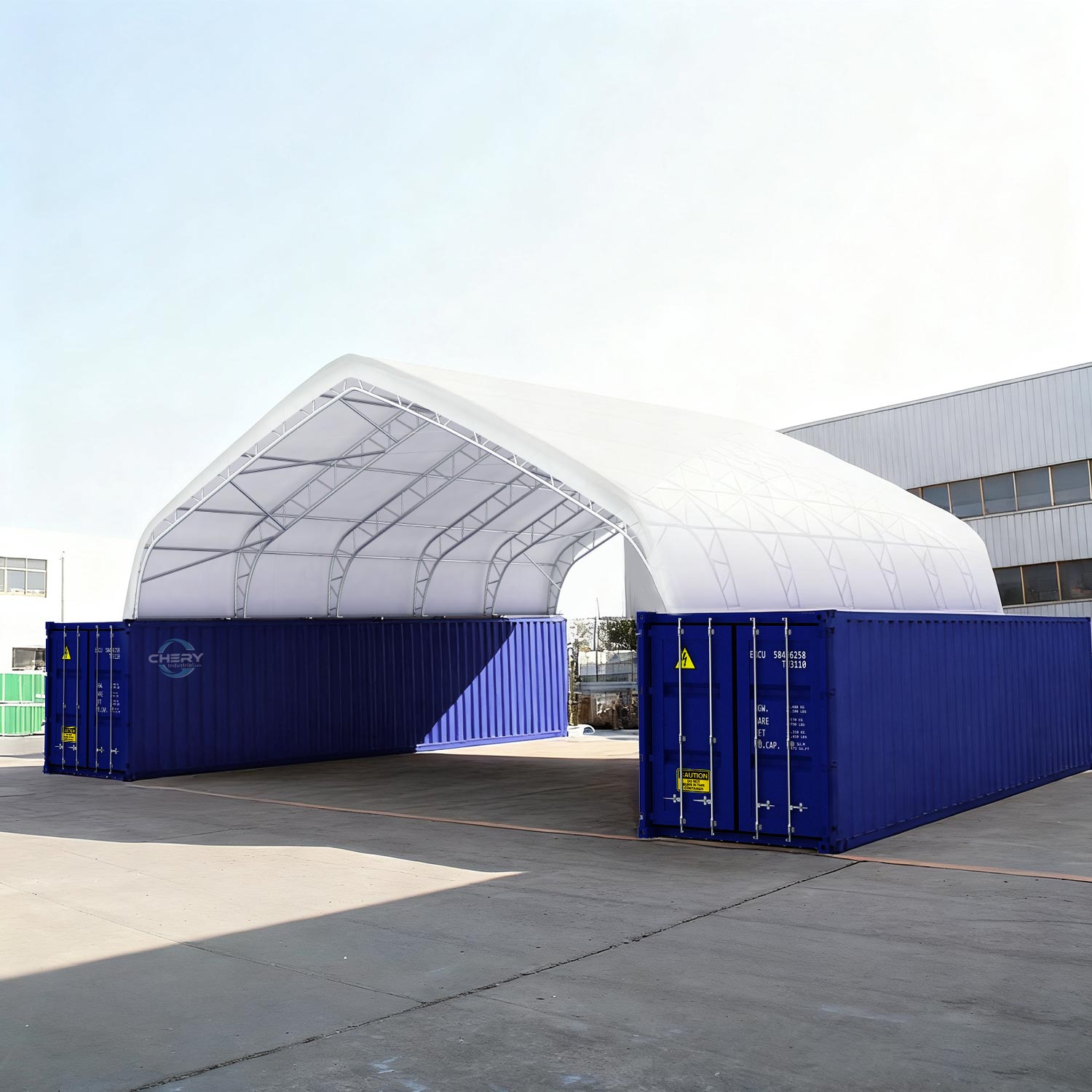

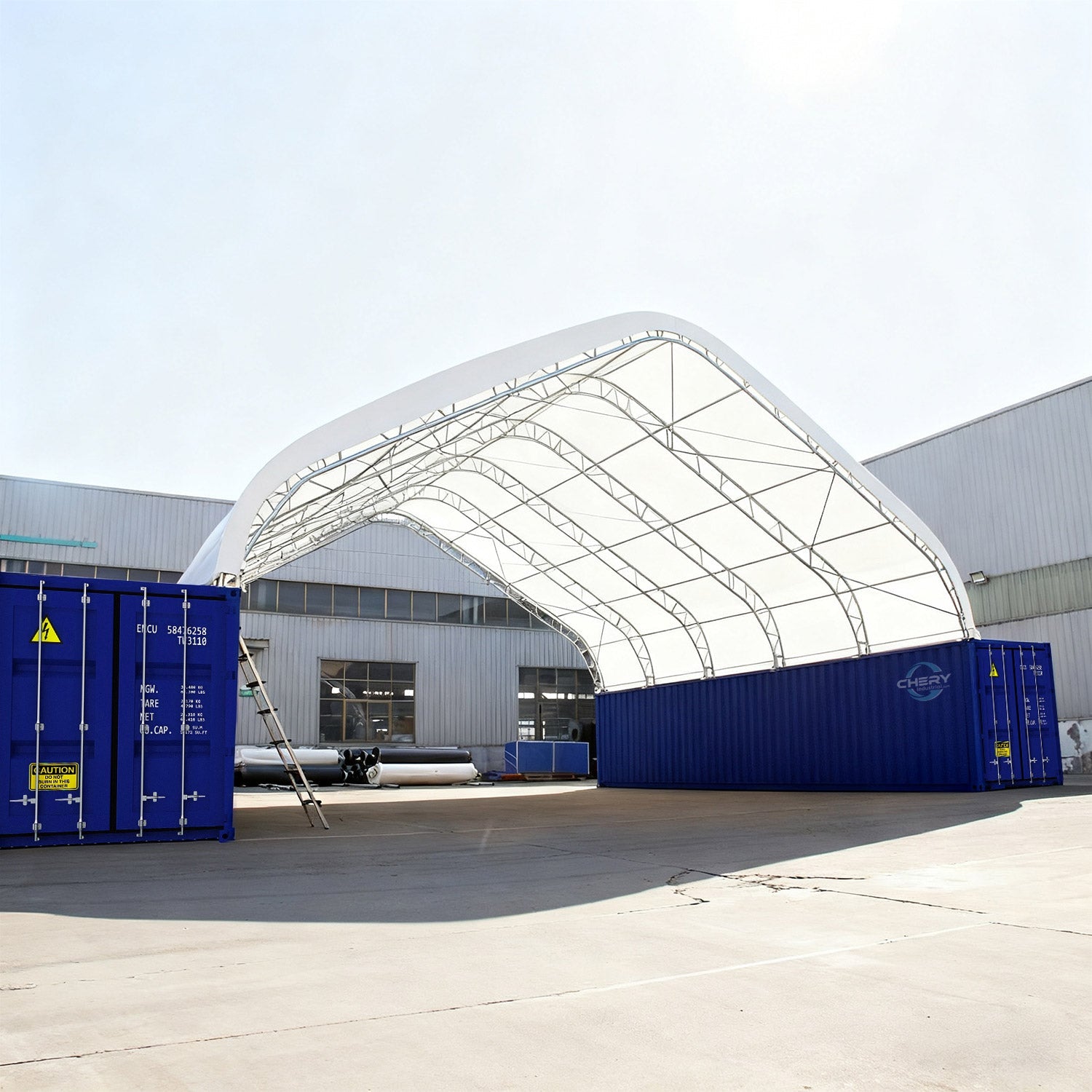

Built Around Shipping Containers
Rather than constructing walls and a foundation from scratch, the canopy is designed to utilize shipping containers as its primary side supports.
The containers can provide valuable enclosed storage of their own while the canopy creates a large protected area between them.
The result is a highly practical storage system that combines secure container storage with expansive covered workspace.
For farms, ranches, workshops, and commercial yards, that can make far better use of the footprint than containers alone.
Freight & Delivery
This is a large freight-shipped structure.
The packaged shelter weighs approximately 3,130 lb.
A forklift or equivalent unloading equipment is required at delivery.
The manufacturer currently lists approximately:
Processing: 1–2 business days
Transit: Approximately 5–8 business days
Actual freight times may vary depending on inventory, destination, carrier scheduling, and site accessibility.
Because of the shipment size and weight, customers should plan unloading arrangements before delivery.
Important Notes
Warranty
The manufacturer currently lists an 8-year warranty for the PVC cover on this configuration.
Warranty terms, exclusions, installation requirements, and coverage are subject to the manufacturer's current warranty policy. Review applicable warranty documentation before installation.
Installation Considerations
Shipping containers, foundations, site preparation, and unloading equipment are not assumed to be included unless specifically stated with the order.
Before installation:
- Confirm container placement and spacing
- Ensure containers are level and structurally suitable
- Verify appropriate anchoring
- Confirm adequate site drainage
- Check overhead and underground utilities
- Review local permitting and zoning requirements
- Verify applicable wind and snow-load requirements
- Follow all manufacturer assembly instructions
Local building codes and permit requirements vary significantly, particularly for larger agricultural and commercial structures.
