20' × 20' Heavy-Duty Livestock Corral Shelter with Front Door

Product Overview

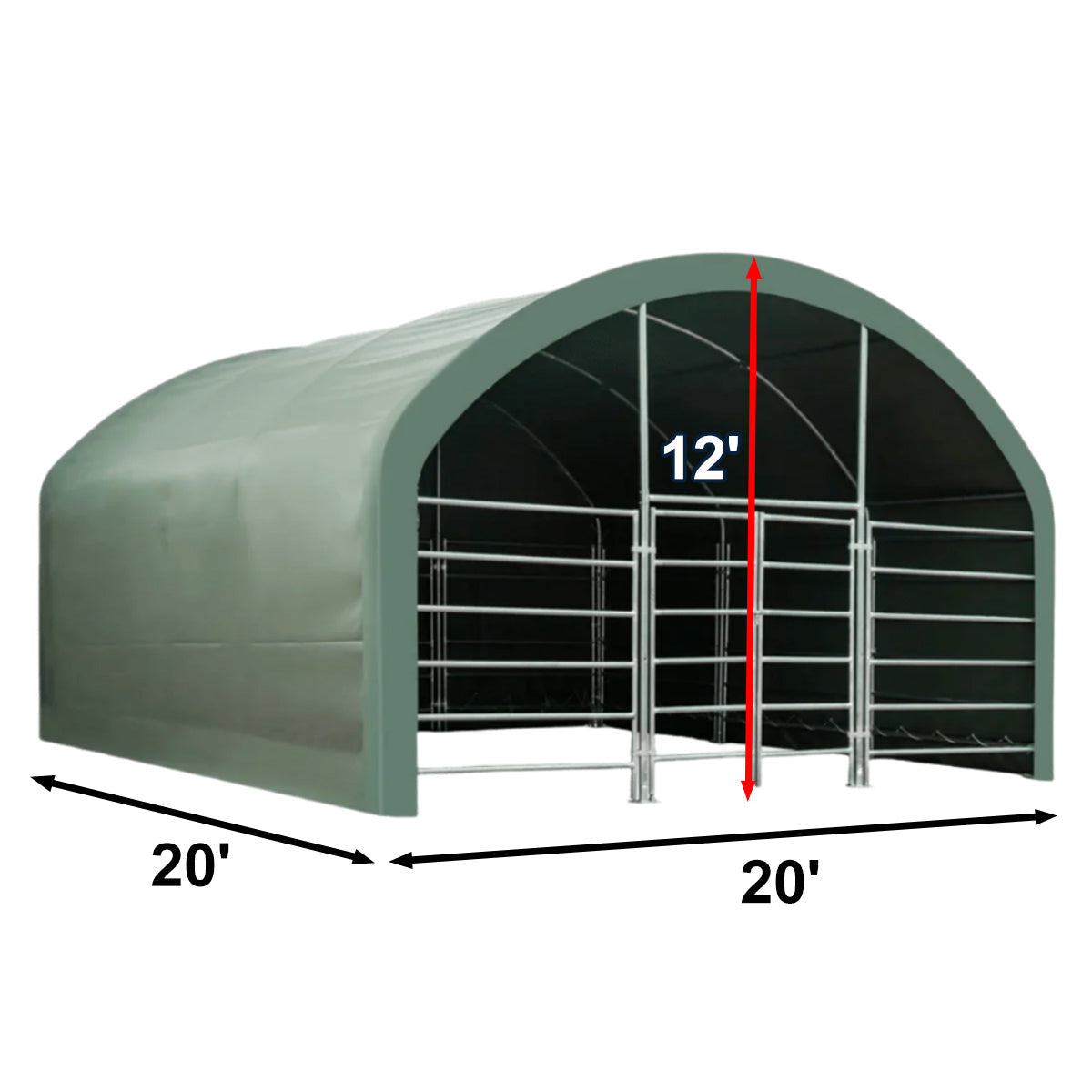

Create a spacious covered area for compatible livestock with this 20' × 20' corral shelter. Its 400-square-foot footprint and 12-foot overall height provide substantially more room than compact pasture shelters, making it suitable for larger paddocks, corrals, and animal-management areas.

The arched structure uses hot-dip galvanized steel tubing for corrosion resistance and outdoor durability. Multiple PE and PVC cover options allow the shelter to be configured around different budgets, climates, and expected levels of use. A front access door supports routine animal movement, feeding, cleaning, and maintenance.

Key Features

• 400-square-foot covered area: Provides generous shelter space within a 20' × 20' footprint.
• 12-foot overall height: Offers useful vertical clearance for compatible livestock and equipment.
• Front access door: Supports routine entry, cleaning, feeding, and animal-management tasks.
• Hot-dip galvanized frame: Helps protect the steel tubing against corrosion and outdoor exposure.
• Reinforced tubular construction: Uses 60mm arch tubes, 40mm purlins, and 40mm fence tubing.
• Multiple cover options: Choose an economical PE cover or one of four heavier PVC fabric weights.
• Treated PVC fabric: PVC options are described as UV-treated with fade-resistant, anti-aging, and antifungal additives.
• Diffused natural light: The cover is designed to admit daylight while reducing direct UV exposure.
• Configurable durability: Fabric options range from 300 GSM PE to 900 GSM PVC.
• Long-term design: The supplier estimates a service life of more than 15 years under suitable conditions and with proper maintenance.

Specifications

Available Cover Options

Heavier fabric options generally provide greater resistance to wear, punctures, and repeated outdoor exposure. Confirm the selected cover’s color, light transmission, warranty, and expected performance before ordering.

Livestock and Site Considerations

This structure provides overhead and side protection but should not be treated as a complete livestock-containment system. Front-door dimensions, latch construction, and animal-pressure ratings were not supplied. Proper corral fencing, gates, and livestock-handling systems must be provided separately.

Suitability depends on animal species, size, temperament, stocking density, ventilation requirements, and local climate. Inspect the shelter regularly for loose fabric, damaged tubing, exposed hardware, or areas where animals could rub, chew, or become caught.

A level installation site and properly engineered anchoring system are essential. Anchoring hardware and foundation requirements were not included in the supplied information and should be confirmed before installation.

Weather and Certification Notice

The supplier describes the PVC fabric as waterproof and resistant to UV exposure, mold, wind, cuts, and tearing. Actual protection depends on the selected cover, correct tensioning, secure anchoring, closed openings, maintenance, and prompt repair of damage.

No engineered wind-speed or snow-load ratings were supplied. Confirm structural suitability, anchoring, permits, setbacks, and local wind and snow requirements before purchase.

The source lists “SCE, SGS, TÜV, and CSA” certifications but provides no certificate numbers, testing standards, or supporting documentation. These claims should be verified before being used for permitting or compliance purposes.

Packaging and Delivery

• Package dimensions: 103" × 44" × 49"
• Listed shipping weight: 1,621 lb.
• Forklift or equivalent unloading equipment is required.

Confirm freight-truck access, unloading capacity, package placement, and a prepared staging area before shipment arrives. Equipment used for unloading must be rated for the full shipment weight.
